#atari

17 posts11 participants0 posts today
Public *
Francesco Maida

La classifica dei giochi più venduti in Italia del maggio 1985 secondo la rivista "Videogiochi". Buona parte diventeranno classici:

1. Ghostbusters
2. Skool Daze
3. Impossible Mission
4. Pijamarama
5. Pastfinder
6. Frak!
7. Beach head
8. Supersmash
9. Gryphon
10. Match Point
11. Raid Over Moscow
12. International Soccer
13. Decathlon
14. Pit Stop 2
15. Summer Games

Notate che per trovare un gioco di calcio dobbiamo scendere fino al 12esimo posto 👌

Classifica del Maggio 1985: 1. Ghostbusters (Activision) 2. Skool Daze (Microsphere) 3. Impossible Mission (Epyx) 4. Pijamarama (Mikro-gen) 5. Past Finder (Activision) 6. Frak! (State Soft) 7. Beach head (Access) 8. Supersmash (ommodore) 9. Gryphon (Quicksilvas) 10. Match Point (Psion) 11. Raid Over Moscow (Access) 12. International Soccer (Commodore) 13. Decathlon (Activision) 14. Pit Stop 2 (Epyx) 15. Summer Games (Epyx)
#retrogaming#c64#zxspectrum
Continued thread
Public
Charlie Balogh

Before packing away the STE for now, yet another annoyance just got solved - I bought an external Gotek adapter/cabling a while back, but it couldn't fit together with the Ultrasatan. So I bought another kind of adapter, that has the floppy connector shifted towards the modulator.

This makes connecting an external Gotek drive AND certain ACSI devices at the same time possible. "Amazing" stuff. 🤪👍

(Pictures not very exciting, posted for my own future reference. 😅)

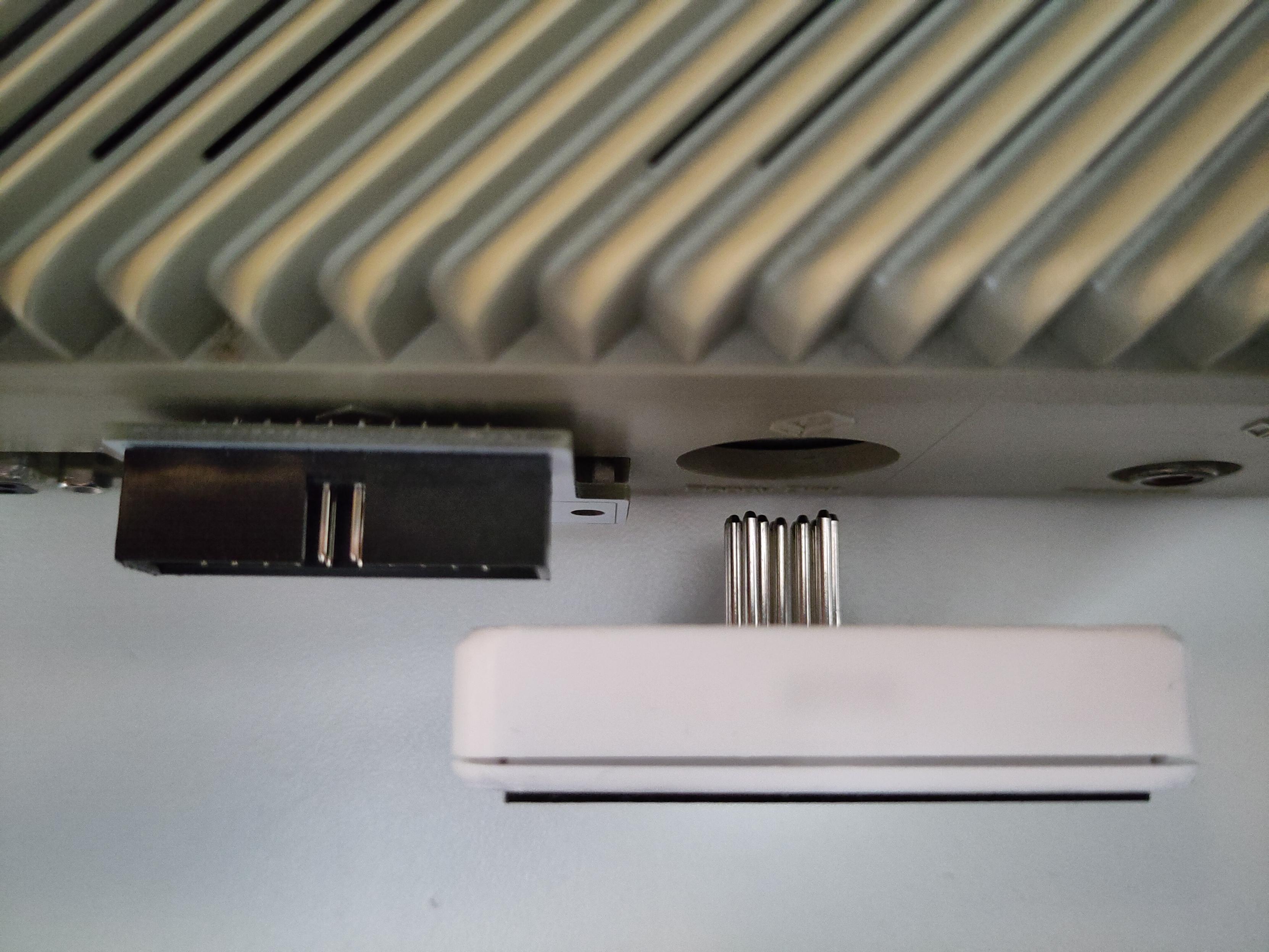

A picture showing the OG problem. the floppy connector overlapping the Ultrasatan ACSI connector, so both can't be plugged at the same time.
Another picture showing the OG problem. the floppy connector overlapping the Ultrasatan ACSI connector, so both can't be plugged at the same time.

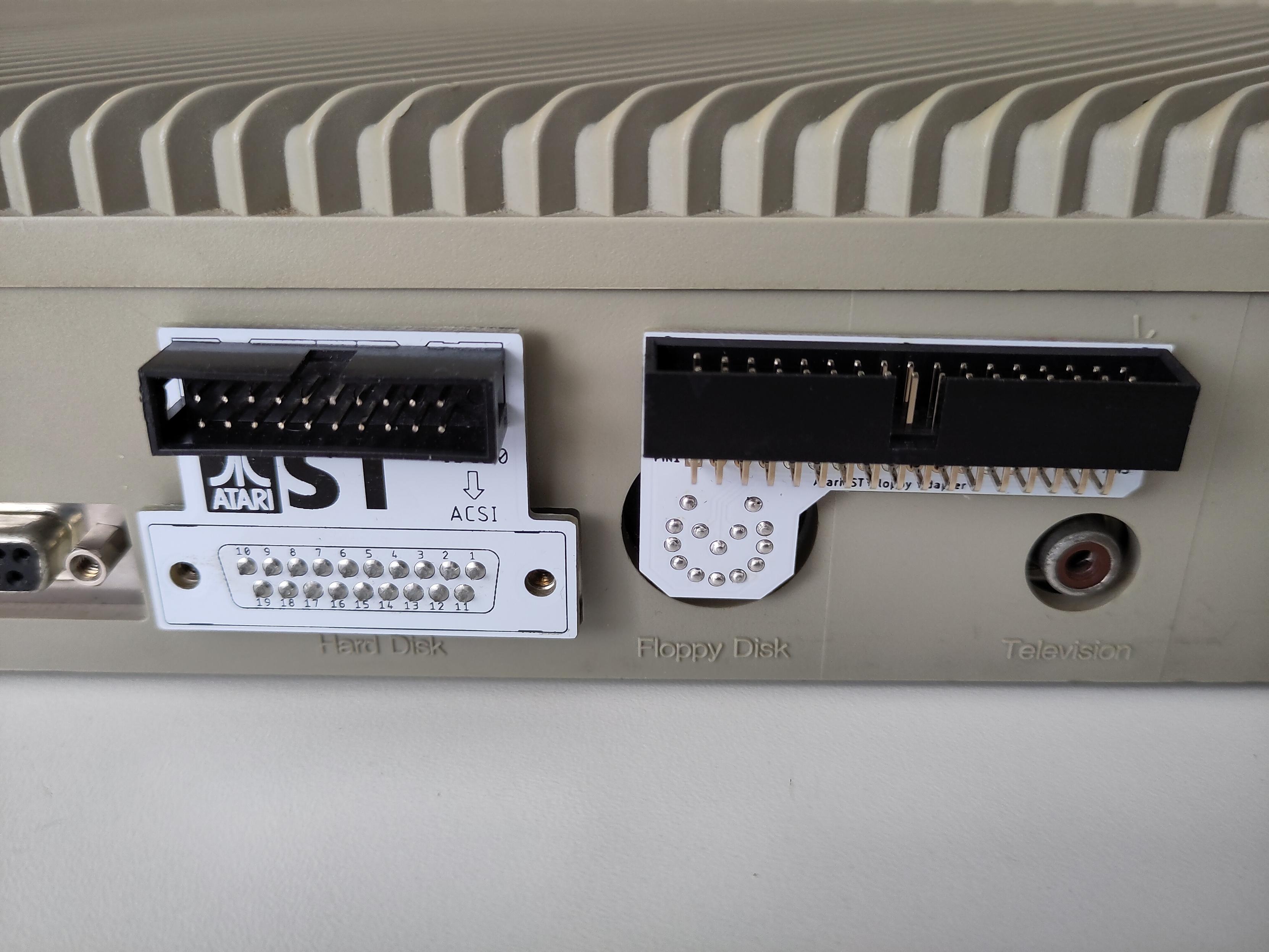

The new adapter is shifted towards the modulator, so fits just fine with the Ultrasatan ASCI adapter. The photo shows both of them plugged at the same time.

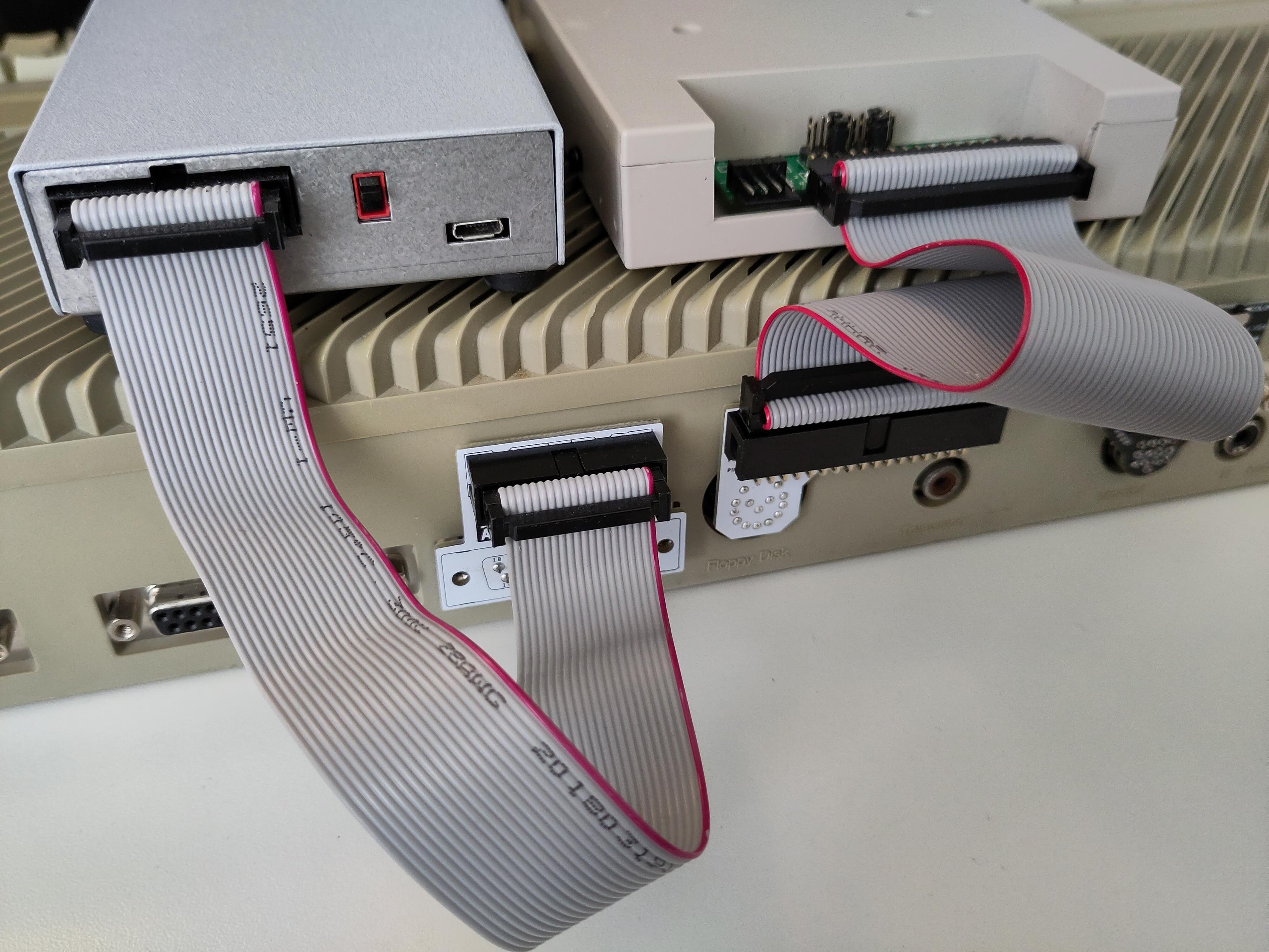

The Ultrasatan SD card device and an external Gotek drive both connected at the same time, with full cabling.
#atari#retrocomputing
Continued thread
Public
Charlie Balogh

The "TOS emulator" runs fine, so I pulled out the soldering iron and installed the STE "DMA fix" I also bought.

This is a recent-ish hardware solution to work around a signal timing issue with the older C025913-38 DMA chip in these machines, that can cause data corruption with ACSI peripherals. Atari made a newer version of the chip, the C398739-001A, that doesn't suffer from the issue, but that's hard to find. This adapter board offers a solution for the older chip.

The "ST DMA converter" board, both top and bottom sides. The top side is empty, just pins for the old DMA chip to sit in, the bottom side contains several SMD components, including some 74-series logic chips, capacitors and resistors.
Mosaic-image of the installation process. The managed to pull the old DMA chip very cleanly. Not just the board got minor to no damage, but also the chip's pins remained very clean. I soldered the DMA fix board directly into the mainboard. The DMA chip now sits on top of it.
Because the "TOS emulator" board hangs over the DMA chip, I was not sure, if it would still fit after the DMA fix is installed. It does, and this is what's seen on this photo. I managed to install the DMA fix very low, so there's even some small air gap between the top of the DMA chip and the bottom of the ROM board, they don't touch.
The STE is assembled again, and it's now running with the UltraSatan ACSI2SD card device just fine. Previously this combination was very prone to data trashing due to the DMA issue.
#atari#retrocomputing
Public
Charlie Balogh

Toying with the Sidecartridge "TOS Emulator" I bought for my Atari STE. It's a Pi Pico based ROM replacement, that lets you swap among several different ROM images from software. This is great, because old software and demos prefer TOS 1.x, but the desktop is much nicer on newer versions, plus there's EmuTOS to play with. And everything can be managed from just software alone.

We need this - or a similar soft-switch solution - for Amiga 500 & co!

The Sidecartridge TOS Emulator hardware, as sits on the Atari STE mainboard. It plugs into the two ROM sockets, and there's a Pico-based ROM emulator PCB hanging out on the side.
The GEM desktop of TOS 2.06 running from the Sidecartridge "TOS Emulator" on the Atari STE.
EmuTOS 1.3.0 boot screen, running from the Sidecartridge "TOS Emulator" on the Atari STE.
The SWITCHER.TOS application that lets you switch between several ROM images and upload new ones, running on the Atari STE.
#atari#amiga#retrocomputing
